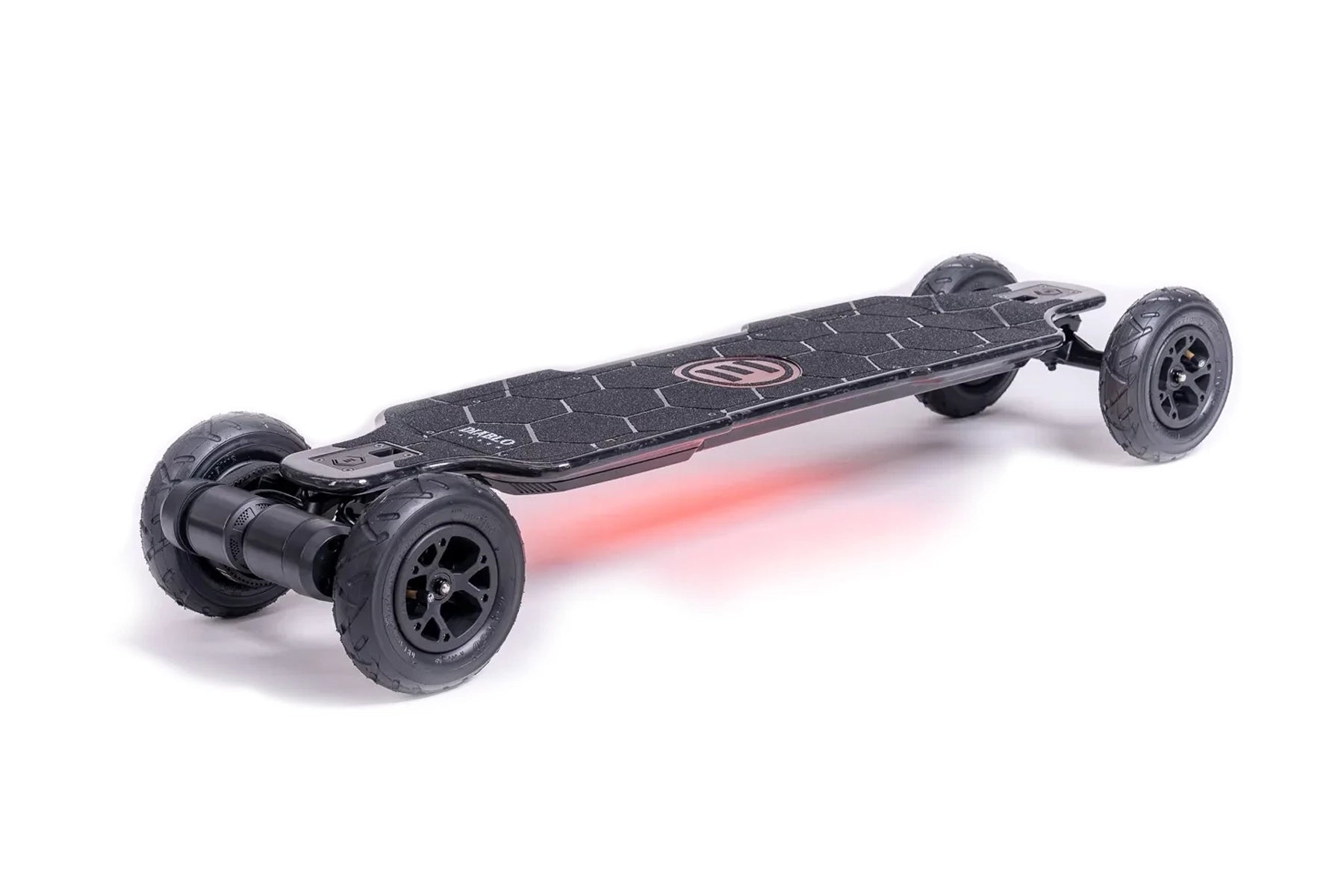

Diablo Carbon All Terrain
Diablo Carbon All Terrain

Diablo Carbon All Terrain

$3,499.00

As low as 6 payments of $583.16 with

  • Conquer Any Terrain
  • Forged Carbon Fibre Deck
  • Unmatched Performance
Notify Me When Available

DIABLO CARBON SHIPPING SCHEDULE

BATCH DELIVERY UNITS LEFT
#1 Early Sep Sold Out
#2 Available NOW Mid Sep 90% Full
#3 October TBA

ABOUT THE BOARD

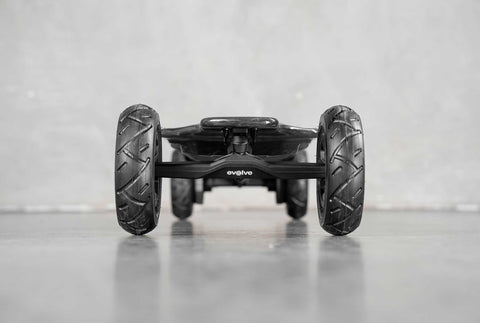

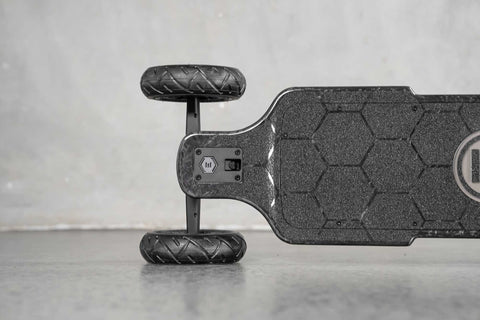

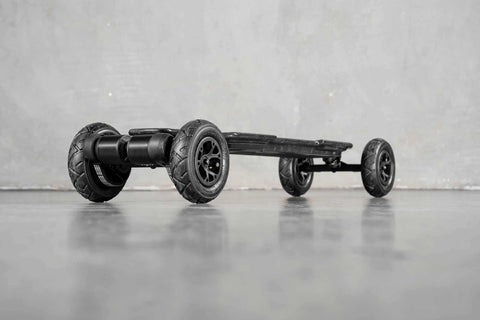

Engineered to reach speeds up to 50 km/h and boasting a range of 50 km, this electric skateboard is built to handle diverse terrains effortlessly. Its forged carbon fiber deck ensures robustness and agility, providing a stable yet dynamic riding experience for adventurers seeking new thrills in any terrain. Equipped with Evolve's Super Carve 2 Trucks, the Diablo Carbon All-terrain offers enhanced stability and precise carving capabilities, delivering a ride that replicates the endless surf wave, or limitless snowboard run.


Powered by the Samsung 50S cell, this board sets a new benchmark in ride times and power efficiency, making it ideal for extended adventures. The advanced eFOC 2.0 Motor Controller and ergonomic Phaze remote offer seamless connectivity and precise control, complemented by the Evolve App's real-time ride data displayed on a vibrant LCD. Designed to replicate the fluidity of surfing or snowboarding, the Diablo Carbon All-terrain merges cutting-edge technology with uncompromising performance.

SPECS

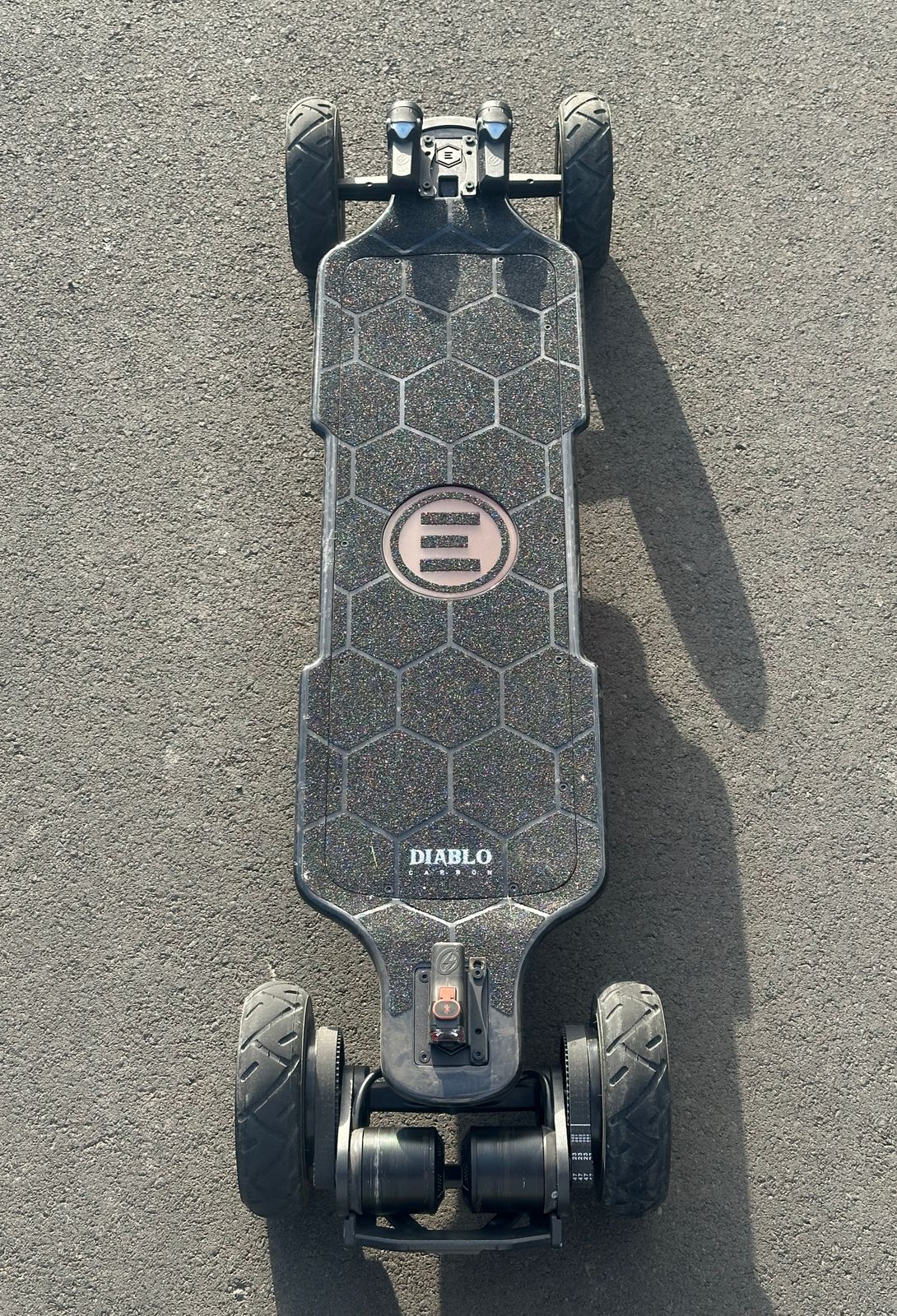

DECK MATERIALS:Forged carbon fibre
DECK LENGTH:100cm (39.3")
WHEEL BASE:96.5cm (38")

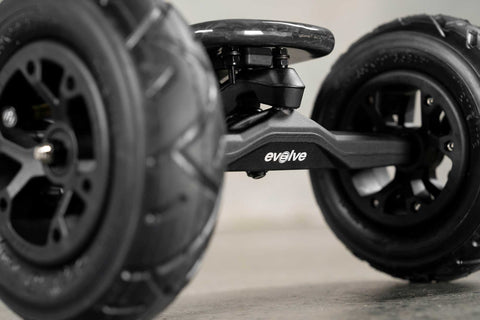

TRUCKS:Evolve Supercarve 2 - Forged/CNC - Black Finish

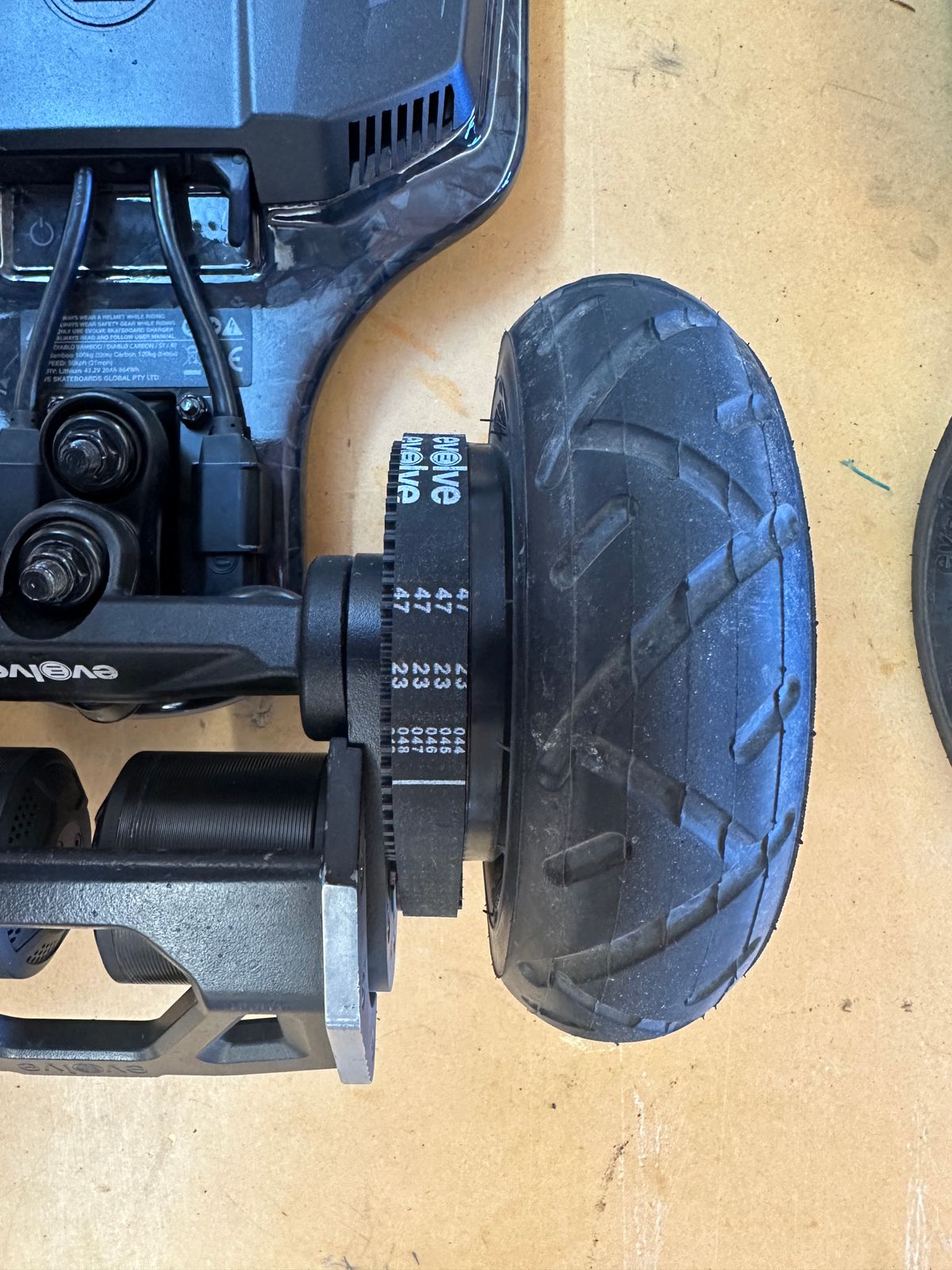

WHEELS:Evolve 175mm/7 inch pneumatic tyres.

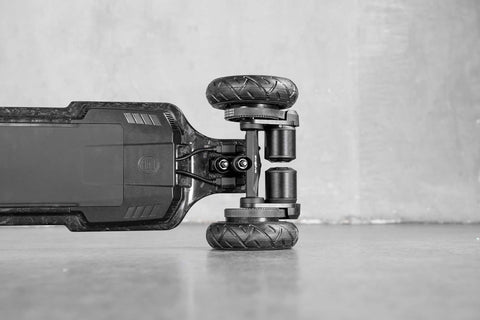

MOTOR:Dual 6374 3500w rated  (7000w Total) custom brushless sensored motors
MOTOR CONTROLLER / ESC:EFOC 2 - Evolve Custom 50V, 200A Dual-Motor Driver, FOC motor commutation, Bluetooth Connection.
BEARINGS:Evolve Precision  Bearings
BATTERY:43.2v - 864WH - 20AH - Samsung 50S
RECHARGE:4 hrs
REMOTE:Evolve Phaze remote with CNC aluminium-reinforced body
WEIGHT:14.3kg (31lb)
RANGE:Up to 50km (31 miles)
TOP SPEED:50km/h (31 mph)
MAX LOAD:120 kg (265 lbs)
SUITABLE TERRAIN:Short grass, dirt, gravel, roads and footpaths
SLIDES:Off road yes, not recommend on sealed surfaces
HILLS:45% + gradient.

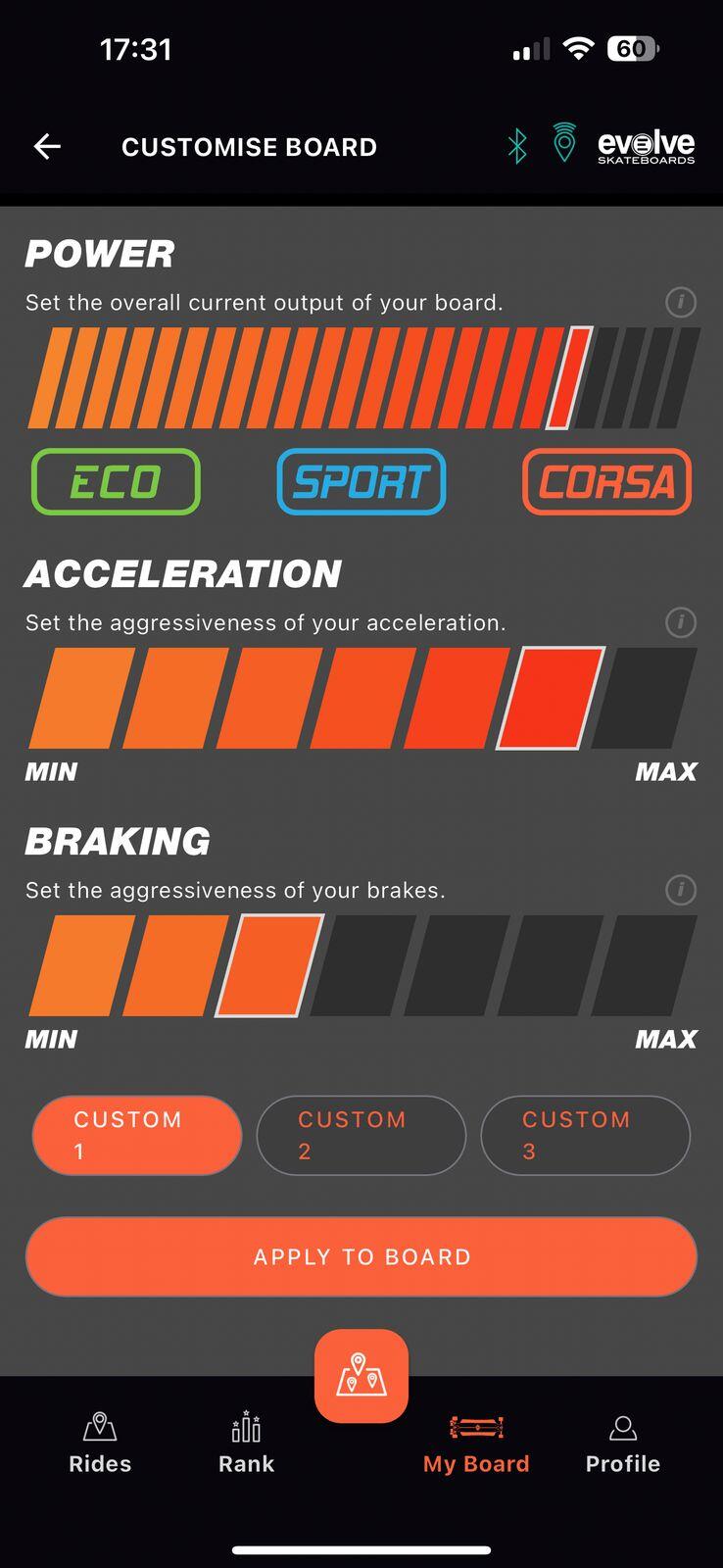

BRAKING:EFOC2 regenerative braking, super smooth with adjustable brake and acceleration curves using the Explore APP

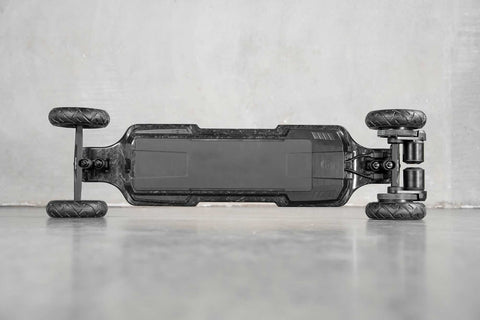

AESTHETICS:World-first and industry-leading chassis-style deck made from forged carbon fibre. The deck seamlessly integrates performance with technology. A custom CNC heatsink incorporates cooling vents and adds to the sophisticated performance styling.

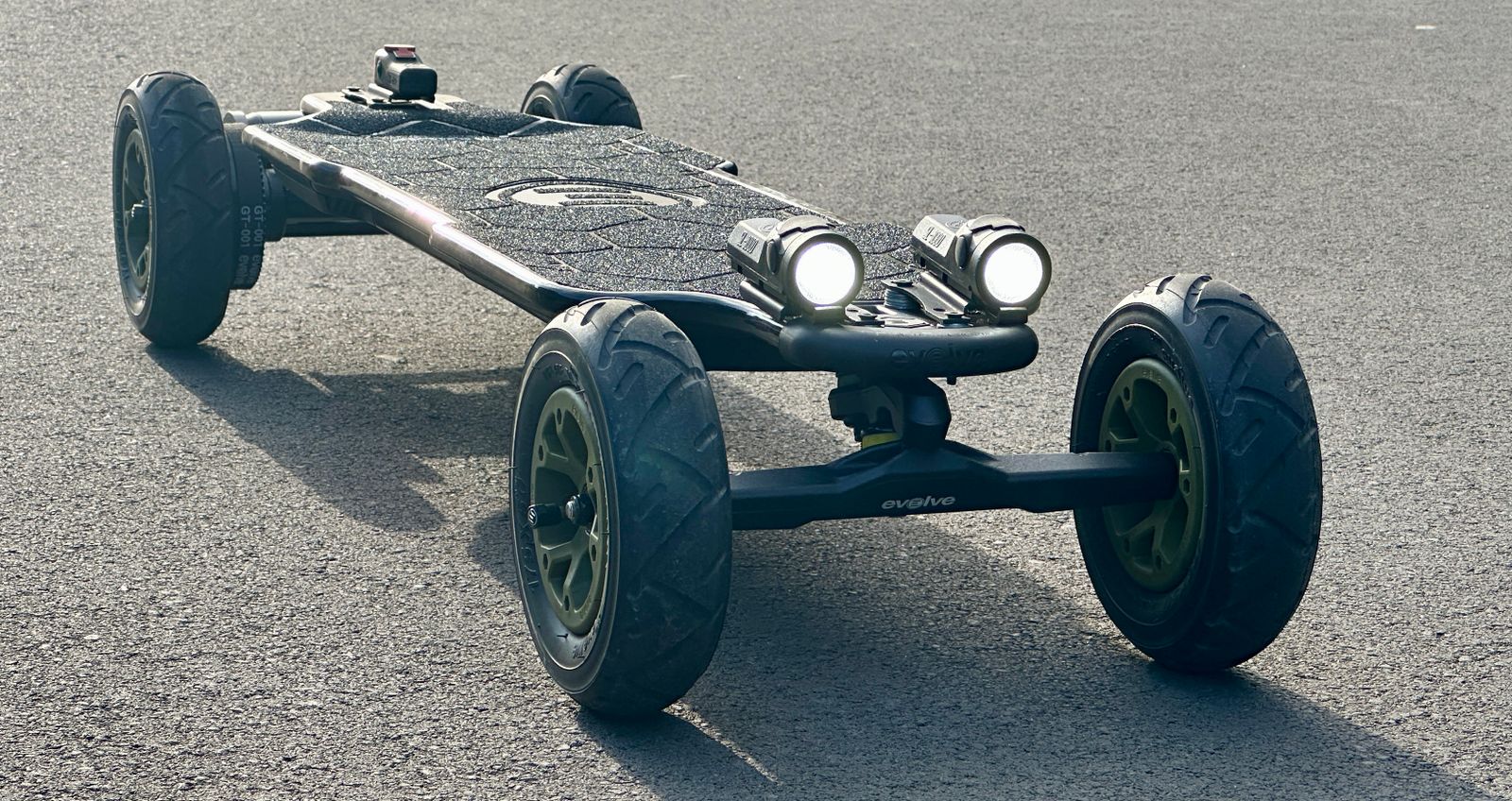

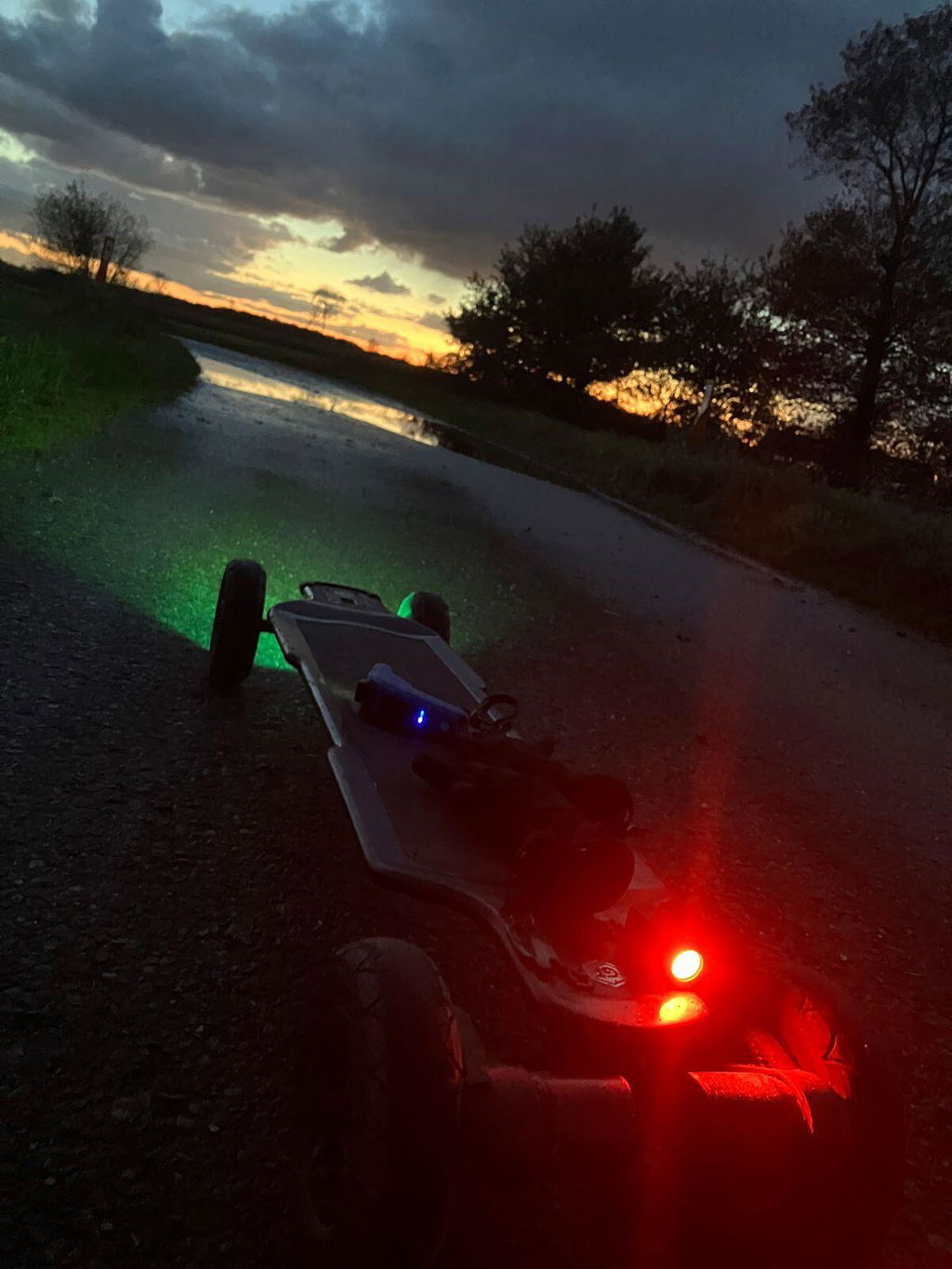

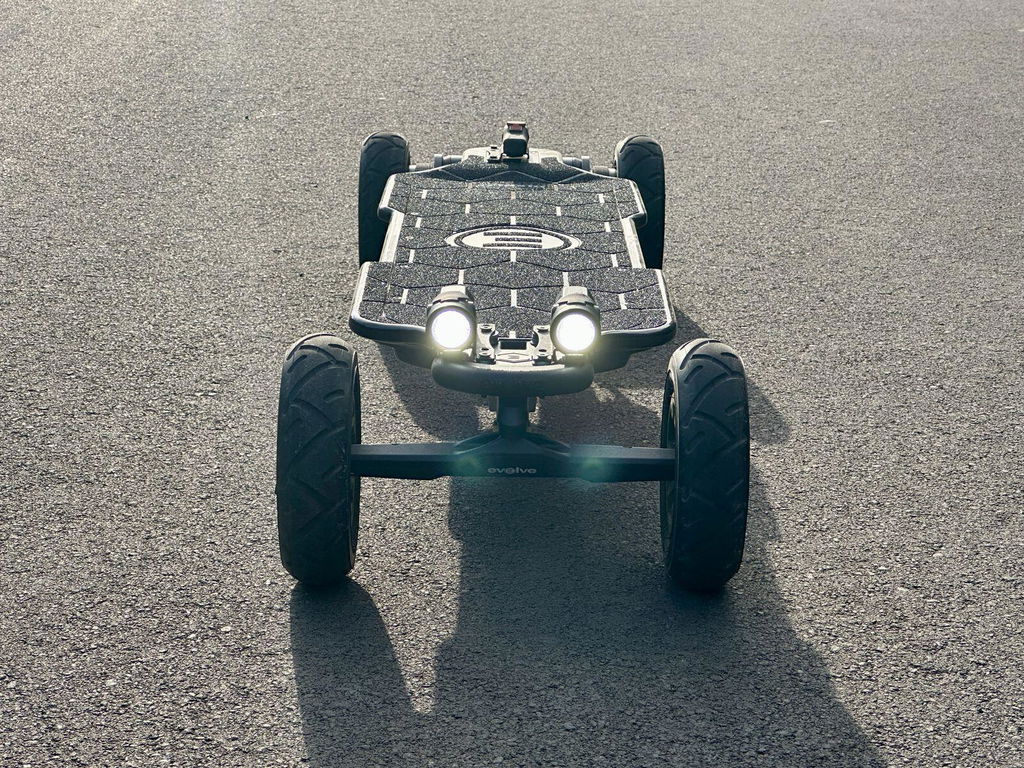

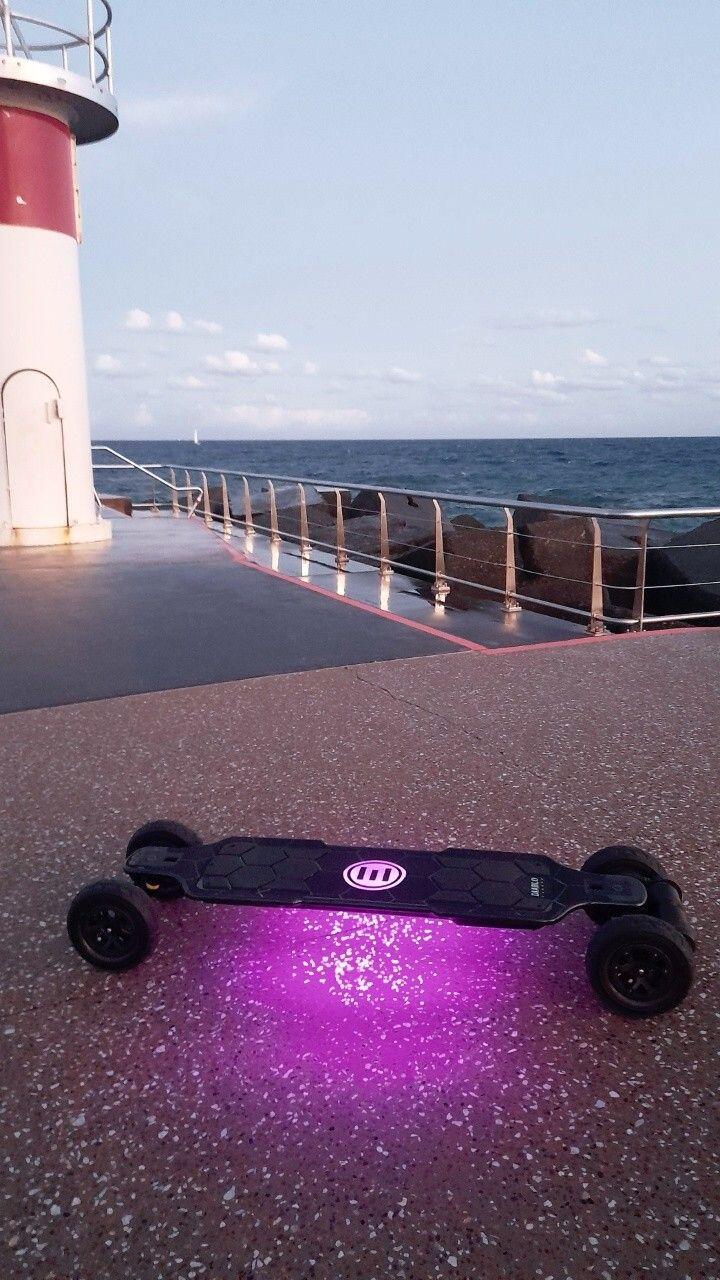

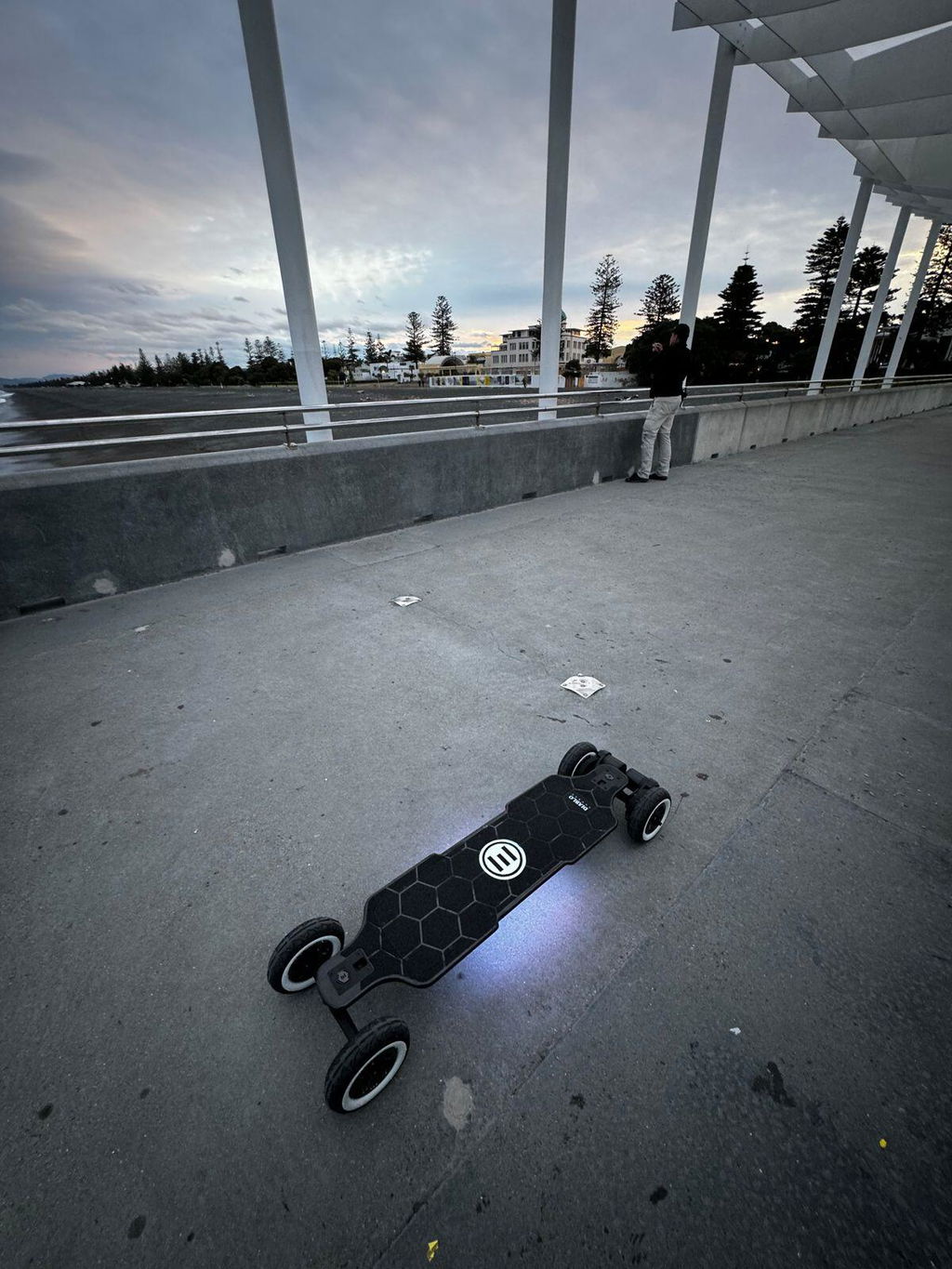

LIGHTS:Integrated under-body & logo LED lights with user-customisable control via the remote and Evolve app, including Smart Brake Lights

WHAT'S IN THE BOX

Your new Diablo Carbon All Terrain
Fast charger (5A)
Phaze Remote, leash and USB-C charging cable
Y tool
Spare screws set

SHIPPING

SHIPPING WITHIN NEW ZEALAND

Skateboards have a flat rate of $59.95, accessories have a flat rate of $10.

Delivery to North Island is usually overnight and to South Island 1-3 days. Please note this does not include processing and packing of your goods but orders are generally dispatched within 1 business day when in stock.



Sorry, we cannot deliver to Post Office Boxes or internationally.



FAQs

Please view more FAQs through this link here.

FAQ

1. Whats the difference between the Hadean and Diablo series?

 The Diablo Series is Evolves latest technology release and supersedes the Hadean series. Comparing to the Hadean boards, the diablo series uses larger more powerful motors, a new EFOC 2.0 ESC, it has a higher top speed rating, has 20% more ride times due to the larger capacity battery, stronger acceleration and braking performance and new Forged CNC SuperCarve 2 truck design. The Diablo also comes with an upgrade Software package.


2. Can I upgrade my Hadean board to perform like the Diablo?

It's possible to turn the Hadean into a Diablo, however to do this it will require a new Samsung 50S battery, 2 new 6374 motors and a new EFOC 2.0 ESC . Swapping these parts will be an expensive upgrade, its far better off purchasing the complete Diablo board which includes a new deck and the SuperCarve 2.0 trucks.


3. Can the Renegade be upgraded to the Renegade Diablo?

 Yes this is possible. To do this you will need 2 new 6374 motors, a new EFOC 2.0 ESC, new remote firmware and new BMS firmware. Please contact Evolve customer service for enquiries.


4. Can I install the new SuperCarve 2 trucks on my Evolve board?

 Yes you can. However you will also need the new AT or Street drive gears that fit the new truck axle. To purchase the new SuperCarve 2 trucks please see the link or contact Evolve customer service for enquiries.


5. Why does my remote vibrate when accelerating hard or riding up a hill?

 If your remote vibrates under these riding conditions its possible you have activated ‘Over Current mode’. The Diablo board allows for a large amount of current to be used for a period of 7-8 seconds only. After 7-8 seconds the remote will drop to Sport mode until you release the acceleration trigger in which the remote automatically returns to Corsa mode.


6. Can I install the Diablo 6374 motors on my Hadean?

 The motors can fit the Hadean motor plates, however they will not work properly with the Hadean motor controller, BMS and remote due to firmware incompatibility.


7. Why is my remote displaying ‘Heat’ and vibrating?

 If your remote displays Heat this means you have activated heat protection on your skateboard and the remote is telling you this. If the motor controller gets over 85 degrees or the battery gets above 70 degrees the motor controller will reduce power until the system recovers and cools down.

POWER

7000

watts


TOP SPEED

50

km/h


RANGE

50

km


HILLS

45%+

incline

  • HUBS
  • TYRES
  • WHEELS

Black

Red

Carbon Fibre

Fruit Tingle

Dark Blue

Khaki

Black
Off Road

Black
All Terrain

Blue
Off Road

Blue
All Terrain

White Wall

97 mm
Black

97 mm
Orange

97 mm
Light Blue

97 mm
Purple

97 mm
White

97 mm
Yellow

107 mm
ABEC

105 mm
Dad Bod

97 mm
Glow

97 mm
Ice Blue

107 mm
Ice Green

105 mm
Ice Orange

Notes
